Vacancies and Free Surfaces in Pure Iron

David C. Haeberle

ESM 4984


Introduction

Iron-based alloys are some of the most widely used metals in the world. These alloys are usually used in structural applications. Iron alloys containing some carbon and manganese are called steels, those with excess carbon are called cast iron, and pure iron is called ingot iron. Pure iron, the material studied in this exercise, is not very useful because it is very weak. The addition of small amounts of carbon, however, increases its strength considerably. Pure iron can exist in two different atomic structures, body-centered cubic and face-centered cubic. The energy required to form vacancies in these two types of iron is calculated below, along with the specific surface energy for the [1 1 1 ] surface in the FCC structure.



BCC Vacancy

Lattice Parameter - 2.87 Angstroms

Cohesive Energy - 4.28 eV

Vacancy Formation Energy - 1.708157 eV

The atomic displacements observed are toward the vacancy in the atoms immediately next to the vacancy, but the next layer moves away from the vacancy. This phenomenon can be seen graphically in figures 3 and 4 of the FCC vacancy (the same phenomenon occurs in FCC). Figure 1 shows the vacancy in the computer-generated BCC iron crystal.

Figure 1: BCC Iron Vacancy

FCC Vacancy

Lattice Parameter - 3.515 Angstroms

Cohesive Energy - 4.196 eV

Vacancy Formation Energy - 1.665257 eV

Figure 2 shows the vacancy in the computer-generated FCC iron crystal. Figure 3 shows the interatomic bond distances in a FCC plane as the atoms get further away from the vacancy. A graphical depiction of this phenomenon is shown in figure 4.

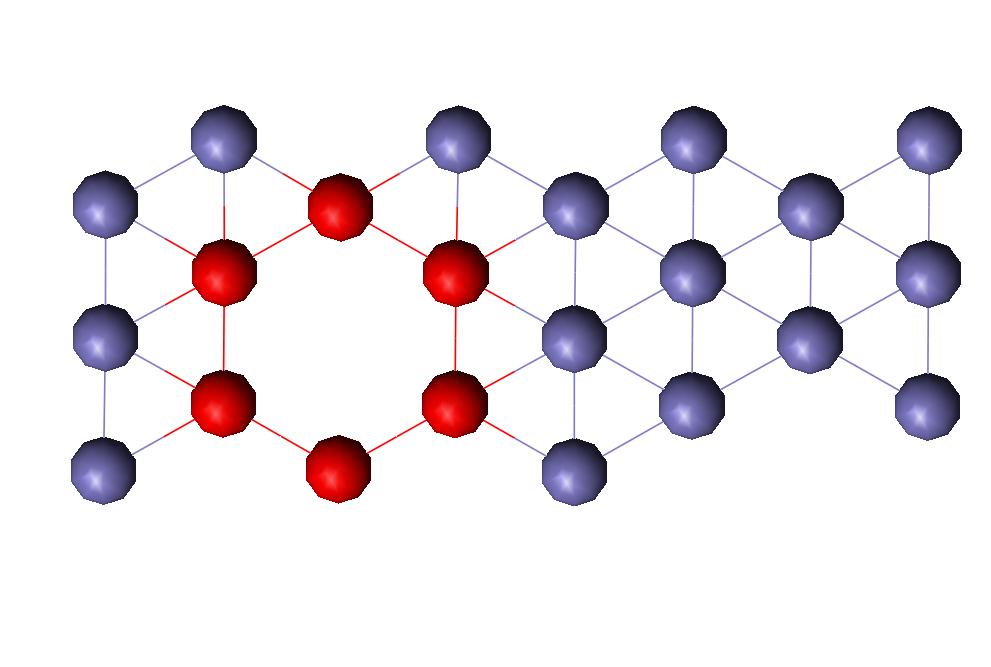

Figure 2: FCC Iron Vacancy

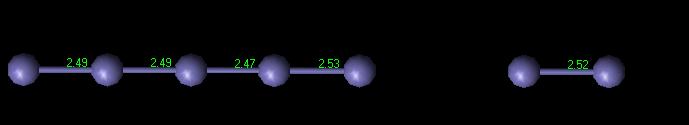

Figure 3: Interatomic Distance for FCC defect



Figure 4: Graphical Representation of Atomic Distance

FCC Planar Defect

Computer generating a separation between atomic planes created the surface for the planar defect. The plane I created was the FCC [1 1 1] plane. This surface defect is shown in figure 5. It interatomic distances do change as they get further away from the defect, but it appears that most of the distances are above the normal for two layers, then below for two layers until it converges upon the normal interatomic distance (shown in Fig. 6).

Specific Surface Energy - 1.816 J/m2

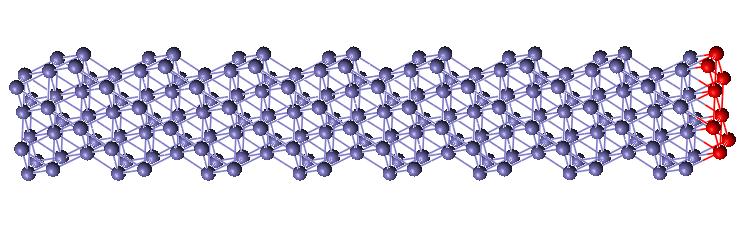

Figure 5: FCC Surface Defect

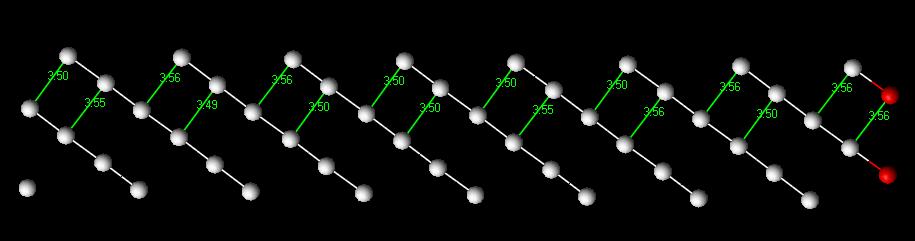

Figure 6: FCC Surface Defect Interatomic Distance
